2010 Triumph Thunderbird & Norton Commando 961 SE
4 posters
Strana 1 od 1
2010 Triumph Thunderbird & Norton Commando 961 SE

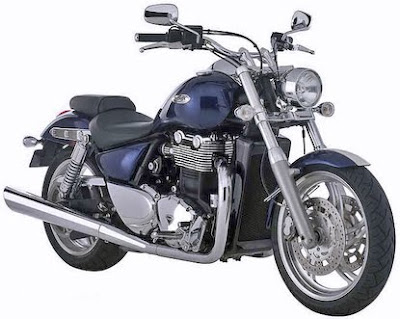

2010 Triumph Thunderbird Specs:
Engine: 1599cc liquid-cooled, DOHC, Parallel Twin, 270 degree firing interval
Bore/Stroke: 103.8 x 94.3mm
Maximum Power In excess of 80 bhp
Maximum Torque In excess of 100 lb-ft
Fuel System: Multipoint sequential electronic fuel injection with SAI , progressive linkage on throttle
Final Drive: Toothed belt
Clutch: Wet, multi-plate
Gearbox: 6-speed constant mesh, helical type
Frame: Tubular steel, twin spine
Swingarm: Twin sided, steel
Front Wheel: Cast aluminium alloy 5-spoke 19 x 3.5 inch
Rear Wheel: Cast aluminium alloy 5-spoke 17 x 6 inch
Front Tire: 120/70 R19
Rear Tire: 200/50 R17
Front Suspension: Showa 47mm forks
Rear Suspension: Showa chromed spring twin shocks with 5-position-adjustable preload
Front Brakes: Twin 310mm fixed discs. Nissin 4-piston fixed calipers
Rear Brakes: Single 310mm fixed disc. Brembo 2-piston floating caliper
Instrument display/functions: Tank mounted instrumentation with large speedo, integrated tacho and LCD display with odometer, twin trip counters, range-to-empty and clock. Auto-cancelling indicators
Length: 2350mm (92.5 in)
Width: (Handlebars) 947mm (37.2 in) (TBC)
Height: 1216mm (47.9 in) (TBC)
Seat Height: 702mm (27.6 in) (TBC)
Wheelbase: 1641mm (64.6in)
Rake/Trail: 32°/151.3mm
Dry Weight TBC
Fuel Tank Capacity: 21 litres (5.5 gal US)
Engine: 1599cc liquid-cooled, DOHC, Parallel Twin, 270 degree firing interval
Bore/Stroke: 103.8 x 94.3mm
Maximum Power In excess of 80 bhp
Maximum Torque In excess of 100 lb-ft
Fuel System: Multipoint sequential electronic fuel injection with SAI , progressive linkage on throttle
Final Drive: Toothed belt
Clutch: Wet, multi-plate
Gearbox: 6-speed constant mesh, helical type
Frame: Tubular steel, twin spine
Swingarm: Twin sided, steel
Front Wheel: Cast aluminium alloy 5-spoke 19 x 3.5 inch
Rear Wheel: Cast aluminium alloy 5-spoke 17 x 6 inch
Front Tire: 120/70 R19
Rear Tire: 200/50 R17
Front Suspension: Showa 47mm forks
Rear Suspension: Showa chromed spring twin shocks with 5-position-adjustable preload
Front Brakes: Twin 310mm fixed discs. Nissin 4-piston fixed calipers
Rear Brakes: Single 310mm fixed disc. Brembo 2-piston floating caliper
Instrument display/functions: Tank mounted instrumentation with large speedo, integrated tacho and LCD display with odometer, twin trip counters, range-to-empty and clock. Auto-cancelling indicators
Length: 2350mm (92.5 in)
Width: (Handlebars) 947mm (37.2 in) (TBC)
Height: 1216mm (47.9 in) (TBC)
Seat Height: 702mm (27.6 in) (TBC)
Wheelbase: 1641mm (64.6in)
Rake/Trail: 32°/151.3mm
Dry Weight TBC
Fuel Tank Capacity: 21 litres (5.5 gal US)
Poslednji izmenio Head dana Ned Jan 24, 2010 9:07 pm, izmenjeno ukupno 1 puta
Head- Broj poruka : 157
Datum upisa : 03.12.2009
Lokacija : Agent Orange-Slobodna Srbija
Re: 2010 Triumph Thunderbird & Norton Commando 961 SE
Pravi rokerski motor u klasicnom stilu. Mislim da su ovi motori za nase trziste isuvise skupi.
Rendi- Broj poruka : 280
Datum upisa : 21.08.2009
Re: 2010 Triumph Thunderbird & Norton Commando 961 SE
odlican je,samo kako stoji sa odrzavanjem vozis i molis se da se nesto nepokvari, jer mislim da je skup za popravke
nenad kraker- Broj poruka : 29
Datum upisa : 18.01.2010
Godina : 51
Re: 2010 Triumph Thunderbird & Norton Commando 961 SE
Uff mnogo mocna masina.Majku im britansku umeju!!!
Korisnik- Broj poruka : 28
Datum upisa : 03.01.2010
Godina : 63
Lokacija : Kragujevac
Re: 2010 Triumph Thunderbird & Norton Commando 961 SE
Norton Commando 961 SE
Ovo je tek retro
- Engine type: New engine developed by Norton and F1 engine builders, MCT of Oxfordshire, England. Parallel twin with push-rod valve actuation, dry sump, 3 bearing crank and balancer shaft.
- Displacement: 961cc
- Cooling system: Air
- Valve actuation: Push rod, 2 valves per cylinder
- Bore x stroke: 88mm x 79mm
- Compression ratio: 10.1:1
- Power: 80PS @ 6500RPM
- Torque: 90Nm @ 5200RPM
- Ignition: Crank fired electronic
- Euro 3 compliant with electronic fuel injection and multiple 3 way catalytic converter
Ispod modela SE su modeli Sport i Caffe Racer
Ovo je tek retro
- Engine type: New engine developed by Norton and F1 engine builders, MCT of Oxfordshire, England. Parallel twin with push-rod valve actuation, dry sump, 3 bearing crank and balancer shaft.
- Displacement: 961cc
- Cooling system: Air
- Valve actuation: Push rod, 2 valves per cylinder
- Bore x stroke: 88mm x 79mm
- Compression ratio: 10.1:1
- Power: 80PS @ 6500RPM
- Torque: 90Nm @ 5200RPM
- Ignition: Crank fired electronic
- Euro 3 compliant with electronic fuel injection and multiple 3 way catalytic converter
Ispod modela SE su modeli Sport i Caffe Racer
Head- Broj poruka : 157
Datum upisa : 03.12.2009
Lokacija : Agent Orange-Slobodna Srbija
Re: 2010 Triumph Thunderbird & Norton Commando 961 SE
Pravi retro brzinac iz pedesetih proslog veka.Kako li se osecaju ti motorasi kad vide ova cudovista??? Pobratime odakle vadis ovo.Ajd sekiraj nas jos malo.
Korisnik- Broj poruka : 28
Datum upisa : 03.01.2010
Godina : 63
Lokacija : Kragujevac
Re: 2010 Triumph Thunderbird & Norton Commando 961 SE
Vozio sam nekad stari Norton komando ,pustao je ulje na sve strane ,ovi danas su ustvari Japanski motorcikli jer Englezi tesno saradjuju sa njima.
Rendi- Broj poruka : 280
Datum upisa : 21.08.2009
Re: 2010 Triumph Thunderbird & Norton Commando 961 SE
Novi gazda Nortona Stjuart Garden
Norton Racing
Norton Racing
Head- Broj poruka : 157
Datum upisa : 03.12.2009
Lokacija : Agent Orange-Slobodna Srbija
Re: 2010 Triumph Thunderbird & Norton Commando 961 SE
Eeee nije vise ni Norton ono sto je nekad bio.
Korisnik- Broj poruka : 28
Datum upisa : 03.01.2010
Godina : 63
Lokacija : Kragujevac
